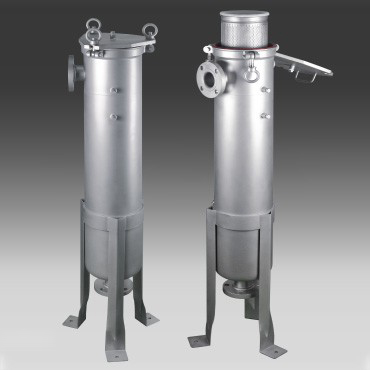

H-SBF
Economical; Suitable for the Majority of Filtration Applications
  • Using a triangle shaped lid, one side is fixed to the filter housing, which makes it convenient to use and maintain.
  • Using a clamp ring and spring to compress the bag filter, thus, ensuring a 360° sealing between the housing and filter bag.
  • The Z-type support allows for equal pressure against the basket.
  • Mechanical polish and sand blast are available according to customer’s requirements.


  • Specification
  • Drawing
  • Ordering Information

Material of Construction

Polish TypeMirror Polish / Sand-Blasted / Wire Drawing
Max. Pressure1.0 Mpa
Max Temp.150°C
MaterialSS304 or SS316L
Inlet / OutletFlange / Tri-Clamp / Thread

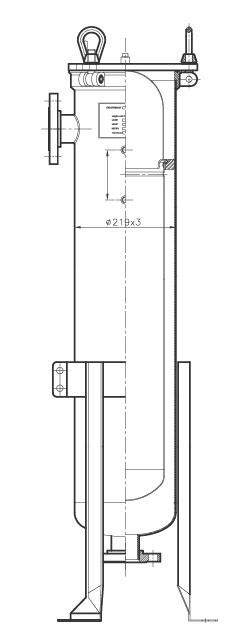

Drawings & Dimensions




NO.1NO.2
Total Height8201214
Diameter219219
Inlet to Ground600993
Outlet to Ground150150

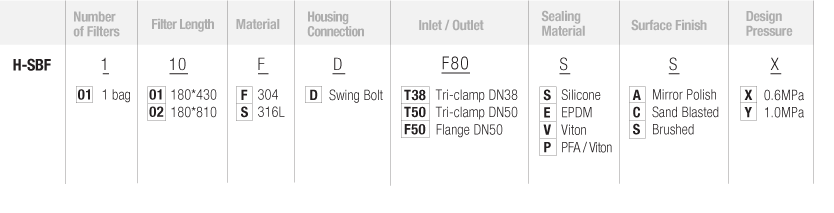

OrderingInformation
